100% US-Based · Fixed Fee, Fixed Delivery Date

Fixed-Fee US-Based PCB Layout Engineering

High-speed digital, mixed-signal, and high-density multi-layer boards from 2 to 40 layers. One US-based layout engineer owns your physical design from netlist intake to verified CAM release: stackup modeling, component placement, constraint-driven routing, and SI/PI checks verified against your fabricator's exact process limits.

40
Layer capacity
3-4 wks
Typical turnaround
$5k
Fixed-fee floor
Altium
Native project returned

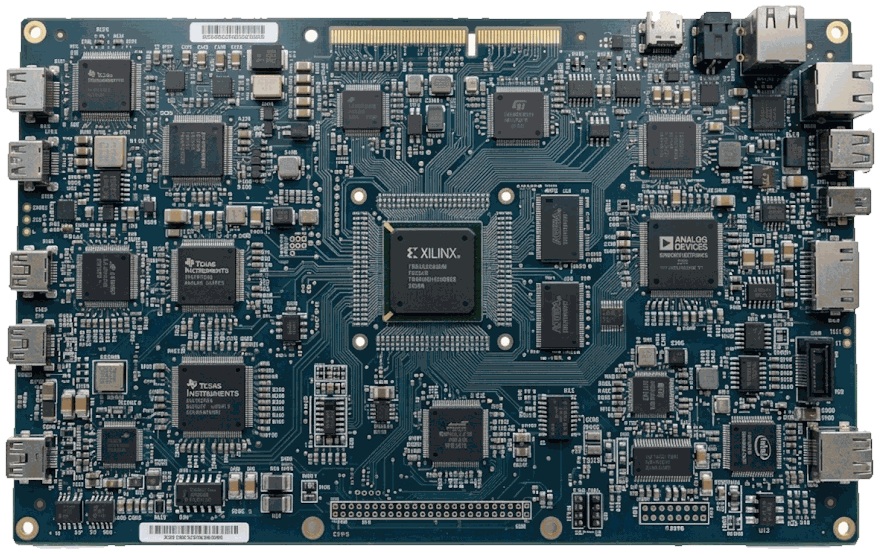

High-density multi-layer PCB featuring dense high-speed routing and BGA fanout
Layout Capabilities

Physical Design and Verification

Mixed-signal architectures, impedance-controlled HDI, and high-layer backplanes up to 40 copper layers. Every package is verified against your contract manufacturer's specific DFM and DFA tolerances before release.

Netlist-to-Gerber Physical Design

Full physical design and verification from your logical schematic and netlist. Deliverables include Gerber X2, ODB++, and IPC-2581 fabrication data, plus the unlocked native Altium project files.

  • Rigorous netlist-to-schematic connectivity audit and footprint verification prior to placement
  • IPC-7351B compliant footprint generation reconciled with manufacturer datasheets
  • Production-ready Gerber X2 (default), ODB++, IPC-2581, and NC drill archives
  • Comprehensive fabrication and assembly drawings ready for immediate quotation by your CM
Full service specs

High-Speed Digital Physical Design

DDR4/5 memory subsystems, PCIe Gen 3-6, and multi-gigabit SERDES routed against strict pre-layout constraints: controlled impedance, phase skew, via-stub control, and reference-plane continuity.

  • Byte-lane length matching with phase-tolerance control within the interface read/write eye
  • Multi-lane SERDES channels tuned for insertion loss, reflection, and near/far-end crosstalk
  • Continuous reference planes and stitching ground vias maintained across all signal layer transitions
  • Live constraint-rule deck enforcement preventing DRC and timing deviations throughout routing
Full service specs

High-Layer-Count & Backplane Design

Deep-stackup architectures up to 40 copper layers and connector-dense backplanes. Pinout mapping, power plane distribution, and stub backdrilling are planned prior to trace escape.

  • 12-40 layers backplane, daughtercard, and riser architectures
  • Signal flow and connector pinout optimization preserving continuous ground return paths
  • Controlled via-stub resonant frequencies with specified backdrill depths on long-reach channels
  • Drill schedules and annular rings aligned to fabrication aspect-ratio capabilities
Full service specs

Manufacturing-Centric Design Audit

Fabrication and assembly rules built directly into the active routing environment. Annular rings, copper balance, and component courtyards are resolved early to prevent fab respins.

  • Real-time DFM rule sets configured from your contract manufacturer's specific process capabilities
  • Pick-and-place nozzle clearances and component courtyards verified for automated assembly
  • Cross-layer copper distribution balanced to eliminate board warpage through SMT reflow
  • Comprehensive DFM/DFA documentation resolving all clearance, mask web, and pad violations
Full service specs

SI / PI Verification & Analysis

HyperLynx 2D/3D electromagnetic field-solver extraction evaluating transmission line behavior, channel margins, and power distribution impedance profiles across high-frequency bands.

  • Stackup dielectric constants (Dk/Df) and copper surface roughness modeled from manufacturer laminates
  • Post-route S-parameter extraction and eye-diagram validation across critical differential pairs
  • PDN target impedance analysis identifying resonance peaks and decoupling capacitor placement
  • Structured engineering report detailing pass/fail margins against JEDEC, PCIe, and IEEE specs
Full service specs
Selected Work

Boards That Shipped

Inspect copper balance, layer transitions, and connector fanout across verified production boards. Interactive 3D views rendered directly from native Altium CAD models.

  • PCB Layout
  • Controlled Impedance
  • USB Type-C
  • CP2102N

USB-to-UART Bridge: 90 Ω Pair on a Four-Layer Stack

Built twice: a 25.4 mm square USB-to-UART bridge that takes Type-C into a CP2102N and out to a four-pin header, with the TVS clamp ahead of the silicon and the fanout pushed to Layer 3 to keep Layer 2 continuous. The 0.126 mm pair and 0.127 mm gap are set from the stackup for a 90 Ω target, and Rev B rewires a TVS array that Rev A had on the wrong pins.

3 November 2026
Read the case study about USB-to-UART Bridge: 90 Ω Pair on a Four-Layer Stack
  • PCB Layout
  • Two-Layer Design
  • Switch-Mode Power Supply
  • LMQ66430

Two-Layer 12 V to 3.3 V Buck: Placement, Plane and Thermal Path

A 3.3 V, 3 A buck built around the TI LMQ66430 in 32.4 by 25.4 mm on two layers at 0.41 mm: C1 sits 3.3 mm from the VIN and PGND pins, the terminals sit on opposite edges, and the output rail runs 1 mm wide for the full 3 A. The bottom layer is the input loop's return path and the heatsink, tied to the exposed pad through one 0.71 mm via with no relief spokes.

4 November 2026
Read the case study about Two-Layer 12 V to 3.3 V Buck: Placement, Plane and Thermal Path
Pricing

Three Tiers, Three Per-Pin Rates

Standard Layout, High Speed Layout, and Advanced HDI Layout each feature published per-pin rates. Validated pin count reflects true routing complexity, delivering fully predictable, fixed-fee quotes with zero hourly drift.

Standard Layout

$2per pin

500 pins × $2 = $1,000

Compact six-layer mixed-signal instrument. 500 × $2 is $1,000, under the $5,000 minimum, so this board is quoted at $5,000.

Standard PCB layout for boards whose fastest interface is USB 2.0, UART, SPI or I2C. Gigabit interfaces and HDI are out of scope, which is why this is the lowest rate on the card.

Qualifying projects

Mixed-signal instruments, control boards, sensor nodes and power boards with USB 2.0, UART, SPI or I2C. Gigabit protocols and HDI are not supported at this tier.

  • USB 2.0, UART, SPI and I2C interfaces
  • Standard through-via and non-HDI stackups
  • Placement, routing, stackup & design-rule setup
  • DRC / DFM / DFA closure
  • Gerber X2 (default), ODB++, IPC-2581, NC Drill, BOM & Pick-and-Place
  • Native Altium project returned
  • Two design-review milestones
Generate Instant Quote
Recommended

High Speed Layout

$4per pin

1,500 pins × $4 = $6,000

Compact eight-layer SoC board with DDR5, PCIe and USB4. Smaller boards are floored at $5,000.

Gigabit interfaces routed to a constraint set: DDR5, USB4, PCIe and other high-speed protocols. Iterative SI design with Siemens HyperLynx is included; HDI is not.

Qualifying projects

FPGA/SoC, networking, storage and dense industrial boards with DDR5, PCIe, USB4 or multi-gigabit Ethernet on through-via or non-HDI stackups. Boards that need microvias move to Advanced HDI Layout.

  • Everything in Standard Layout
  • DDR5, USB4, PCIe and other gigabit interfaces
  • Constraint capture, controlled impedance & length matching
  • Iterative pre- and post-route SI design with Siemens HyperLynx SI solvers
  • $1,000 SI Report available as an add-on
  • Three design-review milestones
Generate Instant Quote

Advanced HDI Layout

$6per pin

4,000 pins × $6 = $24,000

Mid-size ten-layer FPGA board with any-layer HDI. Smaller boards are floored at $5,000.

Any protocol, including HDI: any-layer microvias, via-in-pad and sequential lamination, with iterative HyperLynx SI design included. For boards whose escape leaves no room for a second attempt.

Qualifying projects

Boards with any-layer HDI, 0.4 mm pitch BGA, via-in-pad, LPDDR5X, PCIe Gen 5/6, 100G/112G PAM4 or any interface whose escape needs microvias.

  • Everything in High Speed Layout
  • Any-layer HDI, stacked microvias and via-in-pad
  • Backplane transitions and channel compliance
  • Iterative pre- and post-route SI design with Siemens HyperLynx SI solvers
  • PDN impedance analysis & decoupling optimization
  • $1,000 SI Report available as an add-on
  • Four design-review milestones incl. sign-off review
Generate Instant Quote

Fine print: Fixed-fee layout for the agreed tier, priced from the pin count at that tier's published per-pin rate and floored at the minimum project fee. Quotes are valid for 30 days. Fabrication, assembly and component costs are outside the layout scope and are not included in the instant quote.

Prices as of 2026-11-14.

Get a Number

Request a Fixed-Fee Quote

Give us your board metrics, service tier, and delivery window. You get a binding project fee and an itemized breakdown of every variable above the floor.

What We Do and Do Not Do

  • 100% US-based engineering, one accountable engineer
  • Design files transfer over encrypted channels once the agreement is executed
  • Layout only: schematic capture and electrical design stay with you
  • Fixed fee, with scope changes handled through written Change Orders
  • Quote validity: 30 days
  • The Master Services Agreement must be signed by both parties before any work commences.
[email protected]

New quotes and project scoping · Indiana LLC · 100% US-Based Engineering

Workflow

Review Gates That Stop Respins

Structured engineering sign-offs at stackup confirmation, component placement freeze, critical-net routing, and final CAM generation. Mechanical and electrical conflicts are resolved before panels are etched.

01

Schematic & Netlist Handoff

We perform a cross-verification between your schematic, netlist, mechanical models (STEP/DXF), and BOM. Footprint mismatches, pinout conflicts, and library anomalies are resolved before placement begins.

  • Netlist & schematic audit
  • Constraint & interface capture
  • Target stackup proposal
02

Stackup & Constraint Setup

Dielectric heights, copper weights, transmission line impedance targets, timing skews, and fabricator-specific DFM rule decks are configured in Altium prior to routing any copper.

  • Field-solved stackup
  • DFM design rule deck
  • SI/PI timing constraints
03

Layout & Milestone Reviews

Critical component placement is frozen through formal sign-off before trace routing. High-speed signals, reference planes, and power distribution are routed under continuous real-time DRC.

  • Placement freeze review
  • Routing milestones
  • Design rule sign-off
04

CAM Release & Fab Cross-Check

Complete manufacturing packages are generated and verified against CM fabrication tolerances: Gerber X2 by default, ODB++, IPC-2581, NC drill files, fabrication drawings, and full native Altium projects.

  • Gerber X2 (default) / ODB++ / IPC-2581
  • NC Drill, BOM & Centroid data
  • Native Altium Designer project
Terms and Security

Who Owns the Design

You own all intellectual property upon milestone payment. Native Altium project files, libraries, and CAM archives remain secured on isolated US workstations under signed mutual NDAs.

Complete Design Ownership

Every engagement executes on an isolated, local US workstation. Full native Altium Designer source files (.PrjPcb, .PcbDoc, libraries) and 3D STEP models are transferred directly to you upon milestone completion.

Guaranteed Fixed-Fee Pricing

Project fees derive exclusively from verified pin count, selected routing tier, and agreed deliverables. No open-ended hourly billing, no surprise invoices, and no cost overruns.

Enforced Review Milestones

Formal engineering sign-off gates at stackup lock, component placement freeze, critical-net routing, and final CAM export. Work does not advance without your written approval.

Commercially Binding Quotes

Instant online quotes remain binding and held for 30 days from submission. Project pricing remains stable throughout internal procurement and authorization cycles.

Transparent Physical Scope

Our practice specializes exclusively in physical layout, DFM optimization, and SI/PI verification. Circuit schematic design, firmware development, and mechanical housing design remain with your team.

Fabrication Limits

What the Process Actually Holds

Fine-line trace and space down to 2.5/2.5 mil, laser microvia aspect ratios, copper weights, and controlled-dielectric stackups matched to real fabrication process windows.

Copper Layer Capacity
Up to 40
Backplane and high-layer-count stackups
Minimum Trace / Space
2.5 / 2.5 mil
0.063 mm, HDI class
HDI Microvia Structures
Laser-Drilled
Blind, buried, and stacked laser microvias
Transmission Line Control
±5% target
HyperLynx-verified Z0 targets
Dielectric Modeling
Up to 40L
Modeled against each fab's process window
Laminate Library
FR-4 → Low-Loss
Rogers, Megtron, and Tachyon materials
Max Panel Dimensions
Up to 24″ × 24″
610 × 610 mm large-format support
Minimum Aperture Limits
0.15 / 0.20 mm
Qualified for high-aspect-ratio plating
Formal Review Gates
2-4
Stackup, placement, routing, and release sign-off
CAM Exchange Formats
Gerber X2 / ODB++ / IPC-2581
NC Drill, BOM & Pick-and-Place
Thermal Management
Via Arrays / Pours
Thermal vias sized for peak current
EMC / EMI Compliance
Plane Integrity
Continuous reference planes with split returns caught before release
Due Diligence

Answers, Including the Awkward Ones

Clear technical answers covering IP assignment, full Altium source project handoff, fixed-fee scope limits, revision protocols, and domestic delivery timelines.

The native Altium project, or a netlist plus PDF schematic if that is what you have. Add a 3D STEP or DXF outline, a BOM with manufacturer part numbers, and any constraints you already know: impedance targets, layer count, connector pinouts. From that we run library validation, stackup modeling, routing, a DFM/DFA audit, and CAM release.

Price Your Board Before You Call

Select your pin count, routing tier, and turnaround window. Receive an immediate, itemized fixed-fee quote verified against your project parameters without hourly surprises.
